6.2.22 LocalizeBFDS

6.2.22.1 Outline of the node

This estimates a sound’s direction using delay-and-sum (DS) beamforming (BF) method from multichannel waveform data.

6.2.22.2 Necessary file

The transfer function file or the position files is required. The transfer function file consists of a steering vector. The position files are the microphone position file and source position file which are created by harktool. When the position files are used, this node generates the transfer function based on the positional relationship between the microphone and sound.

6.2.22.3 Usage

When to use

This node estimates a sound’s direction using delay-and-sum beamforming (DS) method. This node is made for the test of EstimateTF node, so the output doesn’t have the enough information for post-processing such as tracking and source separation.

Typical connection

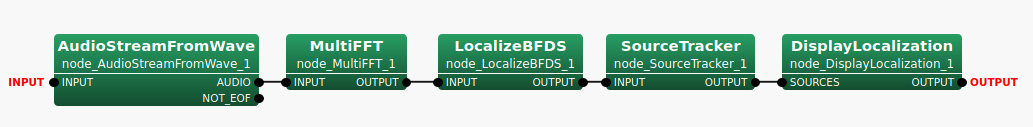

Figure 6.54 shows a typical connection example.

\includegraphics[width=0.85\linewidth ]{fig/modules/LocalizeBFDS-connection}
Figure 6.54: Connection example of LocalizeBFDS

6.2.22.4 Input-output and property of the node

Input

INPUT

: Matrix<complex<float> > , Complex frequency representation of input signals with size $M \times (NFFT/2+1)$.

Output

OUTPUT

: Source position (direction) is expressed as Vector<ObjectRef>  type. ObjectRef  is a Source  and is a structure which consists of the BF power of the source and its direction. The element number of Vector  is a sound number ($N$), but $N=1$.

SPECTRUM

: Vector<float>  type. BF spectrum for every direction. This output terminal is not displayed by default.

Refer to Figure 6.55 for the addition method of hidden output.

\includegraphics[width=\linewidth ]{fig/modules/LocalizeBFDS-output1}
Step 1: Right-click LocalizeBFDS and click Add Output.
\includegraphics[width=\linewidth ]{fig/modules/LocalizeBFDS-output2}

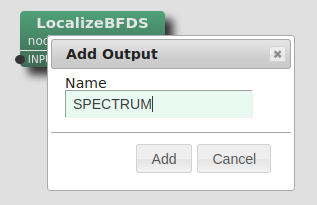

Step 2: Enter SPECTRUM in the input, then, click Add.
\includegraphics[width=\linewidth ]{fig/modules/LocalizeBFDS-output3}
Step 3: The SPECTRUM output terminal is added to the node.
Figure 6.55: Usage example of hidden outputs : Display of SPECTRUM terminal

Parameter

Table 6.39: Parameter list of LocalizeBFDS

Parameter name

Type

Default value

Unit

description

TF_CHANNEL_SELECTION

Vector<int>

See below.



Channel number used

SAMPLING_RATE

int

16000

[Hz]

Sampling rate

LENGTH

int

512

[pt]

FFT points ($NFFT$)

USE_TF_FILE

bool

false



Using flag for Transfer function file

TF_FILENAME

string



Transfer function file name

MIC_POSITIONS

string



Microphone position file name

SRC_POSITIONS

string



Source position file name

SPEED_OF_SOUND

float

340

[m/s]

Speed of sound

DEBUG

bool

false



ON/OFF of debug output

TF_CHANNEL_SELECTION

: Vector<int>  type. Of steering vectors of multichannel stored in the transfer function file, it is parameters which chooses the steering vector of specified channel to use. The channel number begins from 0 like ChannelSelector . Signal processing of 8 channel is assumed by default and it is set as <Vector<int> 0 1 2 3 4 5 6 7> . It is necessary to align the number ($M$) of elements of the parameters with the channel number of incoming signals. Moreover, it is necessary to align the order of channel and the channel order of TF_CHANNEL_SELECTION to be inputted into INPUT terminal.

SAMPLING_RATE

: int  type. 16000 is the default value. Sampling frequency of input acoustic signal. It is necessary to align with other nodes like LENGTH.

LENGTH

: int  type. 512 is the default value. FFT point in the case of fourier transform. It is necessary to align it with the FFT points to the preceding paragraph.

USE_TF_FILE

: bool type. In the case of true, this node uses the transfer function from the transefer function file. In the case of false, this node uses the transfer function based on the positional relationship between the microphone and sound.

TF_FILENAME

: string . There is no default value. The file name of the transfer function file is designated. This parameter is shown when ${\rm USE\_ TF\_ FILE}=true$.

MIC_POSITIONS

: string . There is no default value. The file name of the microphone position file is designated. This parameter is shown when ${\rm USE\_ TF\_ FILE}=false$.

SRC_POSITIONS

: string . There is no default value. The file name of the source position file is designated. This parameter is shown when ${\rm USE\_ TF\_ FILE}=false$.

SPEED_OF_SOUND

: float  type. 340 is default value. The speed of sound.

DEBUG

: bool  type. ON/OFF of the debug output and the format of the debug output are as follows. First, the set of index of sound, direction, and power is outputted in tab delimited for only several number of sound detected in frames. Then, BF spectrum of the frame is shown.

6.2.22.5 Details of the node

Localization using delay-and-sum beamforming :

In the localization using delay-and-sum beamforming, the spatial spectrum is estimated by scanning the beam for the every direction. The beam is formed by following steps.

  1. add the delay for the particular direction to each input signal.

  2. sum the delayed signals.

In this node, the spatial spectrum $P(\theta )$ can be expressed as follows with the steering vector ${\boldsymbol w}^ H$ and the input signal ${\boldsymbol x}$.

  \begin{equation} \label{eq:LocalizaBFDS-eq1} P(\theta ) = {\boldsymbol w}^ H(\theta ) {\boldsymbol x} \end{equation}   (32)

${\boldsymbol w}(\theta )$ for the direction $\theta $ can be expressed as follows with the transfer function ${\boldsymbol a}(\theta )$ .

  \begin{equation} \label{eq:LocalizaBFDS-eq2} {\boldsymbol w} (\theta ) = \frac{{\boldsymbol a}(\theta )}{|{\boldsymbol a}(\theta )|} \end{equation}   (33)

Transfer function besed on the positional relationship between the microphone and sound :

In this node, the transfer function besed on the positional relationship between the microphone and sound is calculated assuming plane wave propagation.
