Performs component-wise division of two sound source correlation matrices.

None.

In what case is the node used?

The calculation node of the correlation matrix is the one created for the sound source from CMMakerFromFFT , CMMakerFromFFTwithFlag , and has the function of dividing each component.

Typical Examples

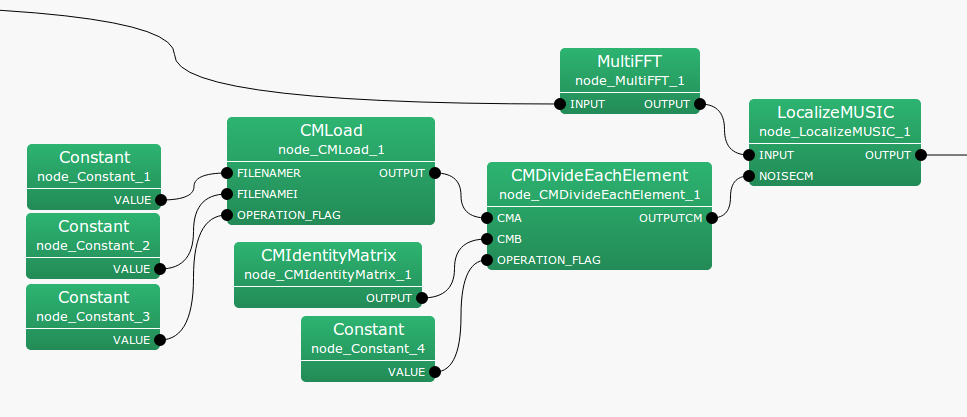

Figure. 6.22 shows the usage example of CMDivideEachElement node. The CMA input terminal is connected to a correlation matrix calculated from CMMakerFromFFT or CMMakerFromFFTwithFlag , etc. (type is `Matrix<complex<float> >` type, but to handle a correlation matrix, convert the three dimensional complex array to a two dimensional complex array and then output). Like CMA, the CMB input terminal also connects to the correlation matrix. At the time of division, CMA ./ CMB is calculated, where ./ shows component-wise division. OPERATION_FLAG is `int` type, or `bool` type input, and controls when the correlation matrix division is calculated.

Parameter |
Type |
Default |
Unit |
Description |

FIRST_FRAME_EXECUTION |
false |
Selection of first frame execution only |
||

ENABLE_DEBUG |
false |
ON/OFF of debugging information output |

Input

- CMA
:

`Matrix<complex<float> >`type. A correlation matrix for each frequency bin. The $M$-th order complex square array correlation matrix inputs $NFFT/2 + 1$ items.`Matrix<complex<float> >`contains rows corresponding to frequency ($NFFT/2 + 1$ rows), and columns containing the complex correlation matrix ($M * M$ columns across).- CMB
:

`Matrix<complex<float> >`type. Same as CMA.- OPERATION_FLAG
:

`int`type or`bool`type. Only when this input terminal is 1 or when true, calculation of the correlation matrix is performed.

Output

- OUTPUTCM
:

`Matrix<complex<float> >`type. The correlation matrix equivalent to CMA ./ CMB after division is output.

Parameter

- FIRST_FRAME_EXECUTION
:

`bool`type. Default value is false. When true, OPERATION_FLAG is always 0. Even when it is false, the operation is performed only on the first frame.- ENABLE_DEBUG
:

`bool`type. Default value is false. When true, output the frame number calculated to the standard output, during dividing the correlation matrix division.

Performs component-wise division of the two correlation matrices. Note that it is not a matrix division of the correlation matrix. The correlation matrix is a complex three-dimensional array of size $k \times M \times M$ and the division $k \times M \times M$ times is performed as follows. Here, $k$ is the number of frequency bins ($k = NFFT/2 + 1$), and $M$ is the number of channels in the input signal.

OUTPUTCM = zero_matrix(k,M,M) calculate{ IF OPERATION_FLAG FOR i = 1 to k FOR i = 1 to M FOR i = 1 to M OUTPUTCM[i][j][k] = CMA[i][j][k] / CMB[i][j][k] ENDFOR ENDFOR ENDFOR ENDIF }

The matrix that is output from the OUTPUTCM terminal is initialized as a zero matrix, and maintains the final operational result from this point onward.
