1.3.3 CASA 3D Visualizer

Generally, speech plays a fundamental role as a communication medium between people who share the temporal and spatial space and we human being exchange information through speech in various environments. However, the robot often fails to detect various sounds. Moreover, even in the case recorded sounds are played highly faithfully, it is difficult to avoid such failure. This is a life log that attempts to record all in the life and will be a major challenge in terms of playing sounds. One of the causes of such a problem is that sound recognition (awareness) cannot be obtained from a recorded sound, lack of auditory awareness in other words, we presume. A highly-faithful replaying technique would not improve the auditory awareness to the level beyond the real world. Things that cannot be recognized in the actual world would not be solved simply by a highly-faithful replaying, we suppose. Indeed, it has been reported that it is difficult for a person to recognize more than two different sounds simultaneously from the viewpoint of psychophysics [20], In the case that multiple sounds occur at the same time, such as a case of multi-speakers, it is essential to recognize and provide each speech.

\includegraphics[width=\columnwidth ]{fig/Intro/O-ZF-D-color.eps}

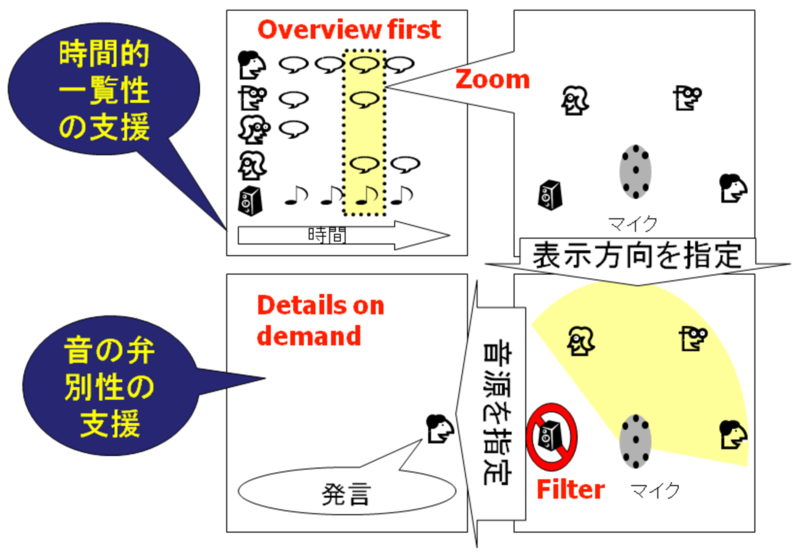

Figure 1.7: CASA 3D Visualizer: CASA 3D Visualizer: Visual Information-Seeking Matra Visualization of outputs from HARK in accordance with “Overview first, zoom and filter, then details on demand”
\includegraphics[width=\columnwidth ]{fig/Intro/mvc001.eps}

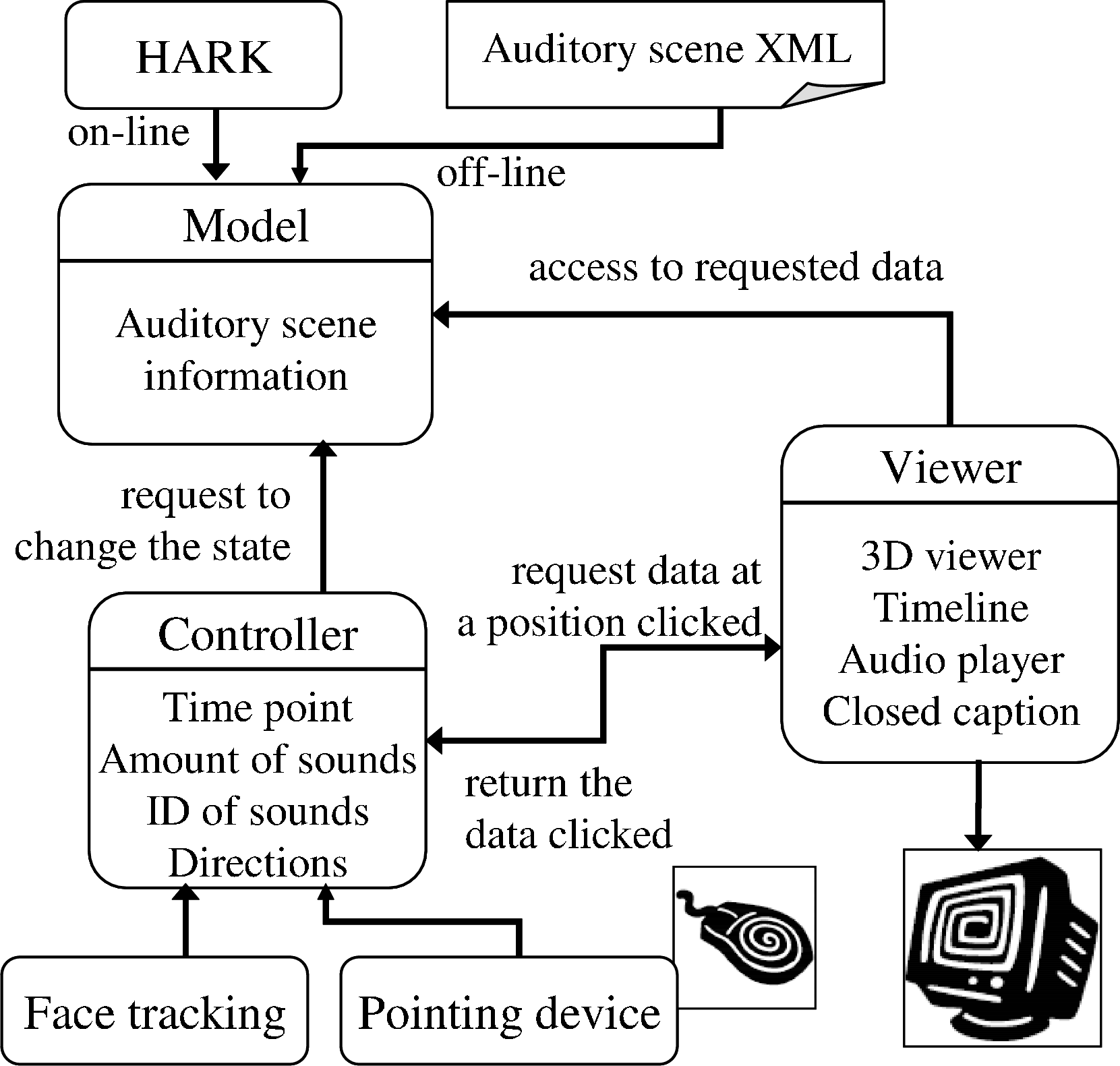

Figure 1.8: Implementation with the MVC (Model-View-Control) model of CASA 3D Visualizer

In order to improve auditory awareness (sound recognition), we modified HARK, and designed and implemented a three-dimensional sound environment visualization system that supports sound environment comprehension [18, 19]. For GUI, the principle of information visualization that Schneiderman proposed (overview first, zoom and filter, then details on demand (Figure 1.7) was reinterpreted to sound information presentation and the following functions were designed:

  1. Overview first: Show overview first.

  2. Zoom: Show specific time zones in detail.

  3. Filter: Extract only the sound from a specific direction and let the robot to listened to it.

  4. Details on Demand: Let the robot listen to only a specific sound.

We attempted with the above GUI to support temporal viewing and distinctiveness of a sound, which had been a problem in dealing with sound information. Moreover, we designed based on the model Model-View-Control (MVC) for implementation (Figure 1.8). Information to be provided from HARK is converted into AuditoryScene XML first. Next, the 3D visualization system displays the AuditoryScene XML.

\includegraphics[width=\columnwidth ]{fig/Intro/ozfd_interface.eps}

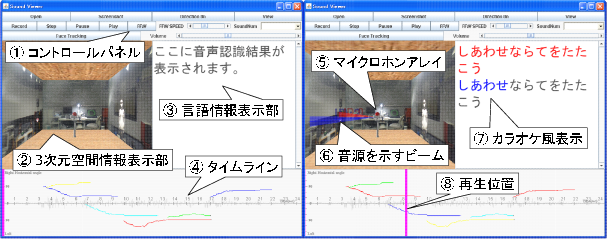

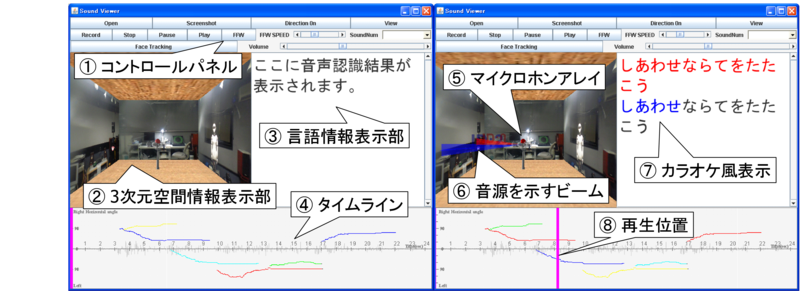

Figure 1.9: GUI of CASA 3D Visualizer

Figure 1.9 shows display screen. Scaling and rotation can be performed in the three-dimensional space information display. At the time of playing a sound, a beam that indicates a sound source direction is displayed with ID. Moreover, size of the arrows corresponds to sound volume. Speech recognition results are displayed in the language information window. At the time of playing a sound, corresponding subtitles are displayed in a karaoke style. Overview information of changes in sound source localization is displayed on the time line and playing position is displayed at the time of playing a sound. What are displayed and acoustic data are corresponded and therefore when clicking on the beam or sound source on the timeline with a mouse, a corresponding separated sound is played. Moreover, the rapid traverse mode is available when playing a function. In this way, we have attempted to improve auditory awareness by visually showing sound information. The following system is produced experimentally as a further application of visualization of the HARK outputs.

  1. Alter GUI displays or sound playing in accordance with facial movement of a user [18],

  2. Display results of Visualizer on Head Mount Display (HMD) [21].

The GUI explained above is a mode of an external observer that gives bird’s eye views of the 3D sound environment. While on the other hand, the first application is provision of an immersion mode that puts the observer in the middle of the 3D sound environment. Taking the analogy of Google Maps, these two visualizing methods correspond to the bird’s eye view mode and street view mode. In the immersion mode, sound volume rises when the face closes and all sounds are heard when keeping away the face. Moreover, when moving the face from side to side and up and down, the sound from the relevant direction is heard as one of the functions provided. The second application is to display sound source directions in real time by displaying CASA 3D Visualizer in HMD, showing subtitles on the lower part. Subtitles are created not by speech recognition but by the subtitles creation software “iptalk”. When a hearing-impaired person gets lectures relying on subtitles, their visual line wanders back and forth between the blackboard and subtitles. This is extremely large load for them and they may in many cases miss important information without noticing that the lecture is going on. Since sound source directions are displayed in this system, auditory awareness for a switch of topic is expected to be strengthened.
