6.7.33 SourceTransformer

6.7.33.1 Outline of the node

Edit values for information (ID, power, azimuth, elevation) of the sound source localization results given as the input. Replace each value with a constant value specified or performs a basic arithmetic operation using the specified value on each value.

6.7.33.2 Necessary file

No files are required.

6.7.33.3 Usage

When to use

This node is used to edit values of ID, power, azimuth, or elevation which is information of the sound source localization results. Replace each value with a constant value specified or performs a basic arithmetic operation using the specified value on each value.

Typical connection

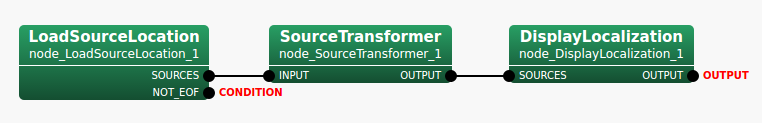

Figure 6.136 shows a connection example. Mainly connect sound source localization results obtained with ConstantLocalization , LoadSourceLocation , LocalizeMUSIC , etc.

\includegraphics[width=\linewidth ]{fig/modules/SourceTransformer}
Figure 6.136: Example of connection of SourceTransformer in an Iterator  subnetwork

6.7.33.4 Input-output and property of the node

Input

INPUT

: Vector<ObjectRef>  type. The sound source localization results. The ObjectRef refers to data in the Source type indicating the sound source information to which an ID is assigned.

Output

OUTPUT

: Vector<ObjectRef>  type. The sound source localization results. The ObjectRef refers to data in the Source type indicating the sound source information to which an ID is assigned.

Parameter

Table 6.134: Parameter list of SourceTransformer

Parameter name

Type

Default value

Unit

Description

ENABLE_ID

bool

false



Enable or disable to edit sound source ID.

ID_OPERATION_TYPE

string

CONST



The operation type (CONST, ADD, SUB, MUL, DIV) to edit sound source ID.

ID

Object

Vector<int>



The value used to edit the sound source ID.

ENABLE_POWER

bool

false



Enable or disable to edit sound source power.

POWER_OPERATION_TYPE

string

CONST



The operation type (CONST, ADD, SUB, MUL, DIV) to edit sound source power.

POWER

Object

Vector<float>



The value used to edit sound source power.

ENABLE_AZIMUTH

bool

false



Enable or disable to edit azimuth of sound source localization results.

AZIMUTH_OPERATION_TYPE

string

CONST



The operation type (CONST, ADD, SUB, MUL, DIV) to edit azimuth of sound source localization results.

AZIMUTH

Object

Vector<float>



The value used to edit azimuth of sound source localization results.

ENABLE_ELEVATION

bool

false



Enable or disable to edit elevation of sound source localization result.

ELEVATION_OPERATION_TYPE

string

CONST



The operation type (CONST, ADD, SUB, MUL, DIV) to edit elevation of sound source localization results.

ELEVATION

Object

Vector<float>



The value used to edit elevation of sound source localization result.

ENABLE_ID

: bool  type. Setting the value to true enables editing sound source ID of the localization results given as the input. The default value is false.

ID_OPERATION_TYPE

: string  type. The operation type to edit sound source ID of the localization results given as the input available when the ENABLE_ID parameter is true. The operation uses the value specified in the ID parameter. Selecting CONST replaces sound source ID with the ID parameter value. Selecting ADD, SUB, MUL, or DIV performs an arithmetic operation on the sound source ID such that add the ID parameter value to the sound source ID, subtract the ID parameter value from the sound source ID, multiply the sound source ID by the ID parameter value, or divide the sound source ID by the ID parameter value.

ID

: Object  type. The value used to edit sound source ID. When a single value is given, use the value to all sound source localization results. Use Vector<int> when it is desired to specify different value per sound source localization result. However, the last element of the Vector<int> is used for the rest of sound source localization results when the number of Vector<int> elements is less than the number of sound source localization results.

ENABLE_POWER

: bool  type. Setting the value to true enables editing sound source power of the localization results given as the input. The default value is false.

POWER_OPERATION_TYPE

: string  type. The operation type to edit sound source power of the localization results given as the input available when the ENABLE_POWER is set to true. The operation uses the value specified in the POWER parameter. Selecting CONST replaces sound source power with the POWER parameter value. Selecting ADD, SUB, MUL, or DIV performs an arithmetic operation on sound source power such that add the POWER parameter value to the sound source power, subtract the POWER parameter value from the sound source power, multiply the sound source power by the POWER parameter value, or divide the sound source power by the POWER parameter value.

POWER

: Object  type. The value used to edit sound source power. When a single value is given, use the value to all sound source localization results. Use Vector<float> when it is desired to specify different value per sound source localization result. However, the last element of the Vector<float> is used for the rest of sound source localization results when the number of Vector<float> elements is less than the number of sound source localization results.

ENABLE_AZIMUTH

: bool  type. Setting the value to true enables editing azimuth of the sound source localization results given as the input. The default value is false.

AZIMUTH_OPERATION_TYPE

: string  type. The operation type to edit azimuth of the localization results given as the input available when the ENABLE_AZIMUTH is set to true. The operation uses the value specified in the AZIMUTH parameter. Selecting CONST replaces the azimuth of the sound source localization results with the AZIMUTH parameter value. Selecting ADD, SUB, MUL, or DIV performs an arithmetic operation on the azimuth of the sound source localization results such that add the AZIMUTH parameter value to the azimuth of the sound source localization results, subtract the AZIMUTH parameter value from the azimuth of the sound source localization results, multiply the azimuth of the sound source localization results by the AZIMUTH parameter value, or divide the azimuth of the sound source localization results by the AZIMUTH parameter value.

AZIMUTH

: Object  type. The value used to edit azimuth. When a single value is given, use the value to all sound source localization results. Use Vector<float> when it is desired to specify different value per sound source localization result. However, the last element of the Vector<float> is used for the rest of sound source localization results when the number of Vector<float> elements is less than the number of sound source localization results.

ENABLE_ELEVATION

: bool  type. Setting the value to true enables editing the elevation of sound source localization results given as the input. The default value is false.

ELEVATION_OPERATION_TYPE

: string  type. The operation type to edit elevation of the localization results given as the input available when the ENABLE_ELEVATION is set to true. The operation uses the value specified in the ELEVATION parameter. Selecting CONST replaces the elevation of the sound source localization results with the ELEVATION parameter value. Selecting ADD, SUB, MUL, or DIV performs an arithmetic operation on the elevation of the sound source localization results such that add the ELEVATION parameter value to the elevation of the sound source localization results, subtract the ELEVATION parameter value from the elevation of the sound source localization results, multiply the elevation of the sound source localization results by the ELEVATION parameter value, or divide the elevation of the sound source localization results by the ELEVATION parameter value.

ELEVATION

: Object  type. The value used to edit elevation. When a single value is given, use the value to all sound source localization results. Use Vector<float> when it is desired to specify different value per sound source localization result. However, the last element of the Vector<float> is used for the rest of sound source localization results when the number of Vector<float> elements is less than the number of sound source localization results.
