14.3.2 Online sound source localization

14.3.2.1 Execution

First, connect your Kinect to a USB port of your computer. Then, run the following command:

> cat /proc/asound/cards
 0 [AudioPCI       ]: ENS1371 - Ensoniq AudioPCI
                      Ensoniq AudioPCI ENS1371 at 0x2080, irq 16
 1 [Audio          ]: USB-Audio - Kinect for Windows USB Audio
                      Microsoft Kinect for Windows USB Audio at usb-0000:02:03.0-1, high speed

If you see the word “Kinect”, the OS successfully recognized it. In this case, its device name is plughw:1 because the number shown in the left side of “Kinect” is one. If the number is not plughw:1, open demo.sh and edit DEVICE.

Then, run the script

> ./demo.sh online

You will see the result like Figure 14.9 in your terminal, and visualized sound locations.

 UINodeRepository::Scan()
 Scanning def /usr/lib/flowdesigner/toolbox
 done loading def files
 loading XML document from memory
 done!
 Building network  :MAIN
 TF was loaded by libharkio2.
 1 heights, 72 directions,1 ranges,7 microphones,512 points
 Source 0 is created.
 Source 0 is removed.
   (skipped)
Figure 14.9: Execution example of online sound source localization

14.3.2.2 Checking the result

If you have problem on localization, check the same things as offline localization. You can also refer to the recipe: Localization failed.

14.3.2.3 Sample network description

Seven nodes are included in this sample. There is one node in MAIN (subnet) and are six nodes in MAIN_LOOP (iterator). MAIN (subnet) and MAIN_LOOP (iterator) are shown in Figures and 14.11. AudioStreamFromMic records the sound. SaveWavePCM stores the sound. Simultaneously, MultiFFT transforms it to spectral representation, LocalizeMUSIC localizes it for each frame, SourceTracker tracks using temporal connectivity, and DisplayLocalization displays it.

\includegraphics{fig/recipes/demo-LocalizationWS8ch-MAIN.png}
Figure 14.10: MAIN (subnet)

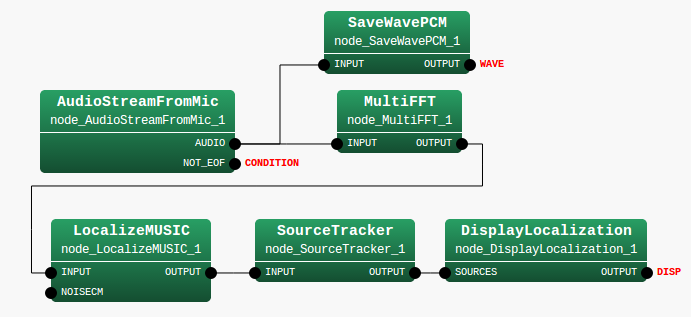

\includegraphics{fig/recipes/demo-LocalizationWS8ch-MAIN_LOOP.png}
Figure 14.11: MAIN_LOOP (iterator)

Table 14.10 summarizes the main parameters.

Table 14.10: Parameter list

Node name

Parameter name

Type

Value

MAIN_LOOP

LENGTH

int

512



ADVANCE

int

160



SAMPLING_RATE

int

16000



A_MATRIX

string

ARG1



DOWHILE

bool

(empty)

LocalizeMUSIC

NUM_CHANNELS

int

4



LENGTH

subnet_param

LENGTH



SAMPLING_RATE

subnet_param

SAMPRING_RATE



A_MATRIX

subnet_param

A_MATRIX



PERIOD

int

50



NUM_SOURCE

int

1



MIN_DEG

int

-90



MAX_DEG

int

90



LOWER_BOUND_FREQUENCY

int

300



HIGHER_BOUND_FREQUENCY

int

2700



DEBUG

bool

false
