## 6.7.3 DataLogger

### 6.7.3.1 Outline of the node

This node provides specific labels to parameters of input and output data as standard outputs or to files.

### 6.7.3.2 Necessary files

No files are required.

### 6.7.3.3 Usage

When to use

This node is used to debug nodes or when saving outputs of a node and using them for experiments and analyses.

Typical connection

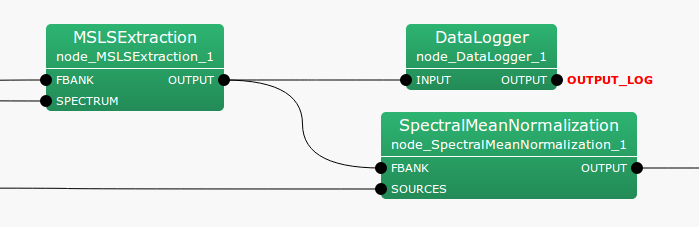

When outputting features of each sound source in text and analyzing them, connect the node as shown in Figure 6.91.

### 6.7.3.4 Input-output and property of the node

Table 6.74: Parameter list of DataLogger
 Parameter name Type Default value Unit Description LABEL Label be given to output data

Input

INPUT

: any ． Note that the supported types are Map<int, float> , Map<int, int> or Map<int, ObjectRef> . ObjectRef of Map<int, ObjectRef> supports only Vector<float> or Vector<complex<float> > .

Output

OUTPUT

: Same as inputs.

Parameter

LABEL

: Specify the character strings to be given to output data so that the user can determine the DataLogger outputs the result when multiple DataLogger s are used.

### 6.7.3.5 Details of the node

This node provides specific labels to the parameters of input and output data to standard outputs or to les.

This node gives a label specified by LABEL to a input data, and outputs to standard output or to a file. Currently, the node supports Map type whose key is Source ID, which is the most frequently used type.

The output format is: Label Frame-count key1 value1 key2 value2 $\dots$ For each frame, the node outputs one line as the format shown above. Label and Frame-count denote the label specified by LABEL and the index of the frame. keys and values are the same as Map . These values are separated by a space.
