6.7.8 PowerCalcForMap

6.7.8.1 Outline of the node

This node converts multichannel complex spectra of Map<int, ObjectRef> type IDs into real power/amplitude spectra.

6.7.8.2 Necessary files

No files are required.

6.7.8.3 Usage

When to use

This node is used to convert complex spectra into real power/amplitude spectra when inputs are Map<int, ObjectRef> type. When inputs are of Matrix<complex<float> > type, use the PowerCalcForMatrix node.

Typical connection

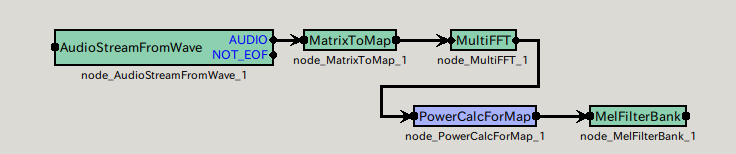

Figure 6.91 shows an example of the usage of the PowerCalcForMap node. A Map<int, ObjectRef> type complex spectrum obtained from the MultiFFT node is converted into Map<int, ObjectRef> type power spectrum and input to the MelFilterBank node.

\includegraphics[width=.8\textwidth ]{fig/modules/PowerCalcForMap}
Figure 6.91: Example of a connection of PowerCalcForMap

6.7.8.4 Input-output and properties of the node

Table 6.68: Parameters of PowerCalcForMap

Parameter name

Type

Default value

Unit

Description

POWER_TYPE

string

POW



Selection of power/amplitude spectra

Input

INPUT

: Map<int, ObjectRef> type. Complex matrices of Matrix<complex<float> > type are stored in the ObjectRef part.

Output

OUTPUT

: Map<int, ObjectRef> type. Real matrices of power/absolute values are stored in the ObjectRef part for each element of the complex matrices of the inputs.

Parameter

POWER_TYPE

: string type. Selection of power (POW) or amplitude (MAG) spectra for the output.

6.7.8.5 Details of the node

The real matrix $N_{i,j}$ of the output for the complex matrix $M_{i,j}$ of an input ($i, j$ indicating the rows and columns of the index, respectively) is obtained as:

  $\displaystyle N_{i,j} $ $\displaystyle = $ $\displaystyle M_{i,j}M_{i,j}^{*}~ ~ (\textrm{if POWER\_ TYPE=POW}), $
  $\displaystyle N_{i,j} $ $\displaystyle = $ $\displaystyle abs(M_{i,j})~ ~ (\textrm{if POWER\_ TYPE=MAG}), $

Here, $M_{i,j}^{*}$ indicates the complex conjugate of $M_{i,j}$.
