14.5.3 MSLS + $\Delta $MSLS

An execution example is shown in Figure 14.5.3. After the execution, a file named MFBANK26_0.spec is generated. This file stores little endian 26 dimensional vector sequence expressed in the 32 bit floating-point number format. When separation cannot be performed well, check if the f101b001.wav files are in the data directory.

> ./demo.sh 2
 UINodeRepository::Scan()
 Scanning def /usr/lib/flowdesigner/toolbox
 done loading def files
 loading XML document from memory
 done!
 Building network :MAIN
Figure 14.17: Execution example

Twelve modules are included in this sample. There are three modules in MAIN_LOOP (iterator) and nine modules in MAIN (subnet). MAIN (subnet) and MAIN_LOOP (iterator) are shown in 14.18 and 14.19. As an outline of the processing, it is simple network configuration in which acoustic features are calculated in MSLSExtraction with the audio waveforms collected in the AudioStreamFromWave module and are written in SaveFeatures . Since MSLSExtraction requires the outputs of the mel-scale filter bank and power spectra for calculation of MSLS, the collected audio waveforms are analyzed by MultiFFT and their data type are converted by MatrixToMap and PowerCalcForMap , and then processing to obtain outputs of the mel-scale filter bank is performed by MelFilterBank . MSLSExtraction reserves a storing region for the $\delta $ MSLS coefficient other than the MSLS coefficient and outputs vectors that are double of the values specified in the FBANK_COUNT property of MSLSExtraction as a feature. zero is in the storing region for the$\delta $ MSLS coefficient. The $\delta $ MSLS coefficient is calculated and stored with Delta . SaveFeatures saves the input FEATURE. The localization result from the front generated by ConstantLocalization is gave to SOURCES.

\includegraphics{fig/recipes/demo-FeatureExtraction2-MAIN.png}
Figure 14.18: MAIN (subnet)

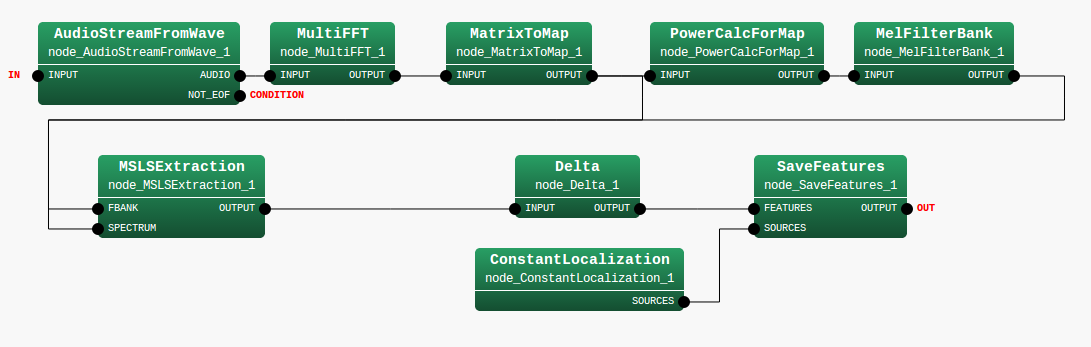

\includegraphics[width=\linewidth ]{fig/recipes/demo-FeatureExtraction2-MAIN_LOOP.png}
Figure 14.19: MAIN_LOOP (iterator)

Table 14.14 summarizes the main parameters

Table 14.14: Parameter list

Node name

Parameter name

Type

Value

MAIN_LOOP

LENGTH

subnet_param

int :ARG2



ADVANCE

subnet_param

int :ARG3



SAMPLING_RATE

subnet_param

int :ARG4



FBANK_COUNT

subnet_param

int :ARG5



DOWHILE

bool

(empty)

Delta

FBANK_COUNT

subnet_param

FBANK_COUNT
