7.1.3 Start up

To start up HARKTOOL, execute the following command.

・To start up HARKTOOL with GUI written in Japanese

>harktool3

・To start up HARKTOOL with GUI written in English

>LANG$=$C ; harktool3

・When the start-up command is executed, the main window and the window titled
「Select a file type for generation」 open as shown in Figure.7.1

\includegraphics[width=120mm ]{fig/tools/harktool/start-1-en.eps}

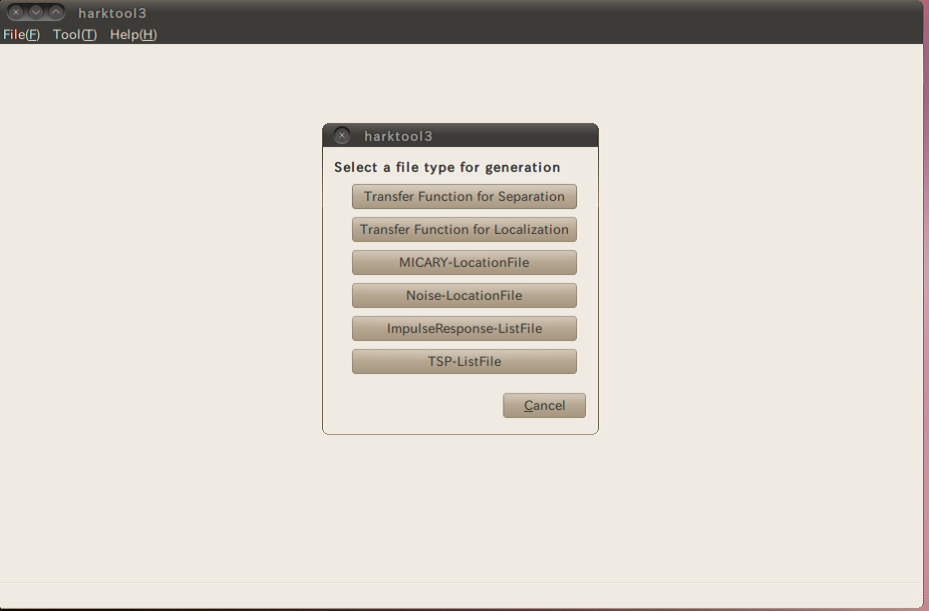

Figure 7.1: start-up


\includegraphics[width=50mm ]{fig/tools/harktool/start-2-en.eps}

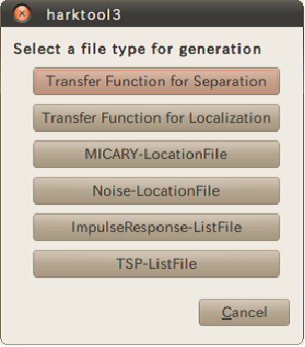

Figure 7.2: Select a file type for generation
  1. Separation Transfer Function File

  2. This command creates a separation transfer function file.
  3. Localization Transfer Function File

  4. This command creates a localization transfer function file.
  5. MICARY-LocationFile

  6. This command creates a microphone location information file, as well as displaying a graph of the generated microphone location information file.
  7. Noise-LocationFile

  8. This command creates a noise location information file, as well as displaying a graph of the generated noise location information file.
  9. ImpulseResponse-ListFile

  10. This command creates an impulse response list file, as well as displaying a graph of the generated impulse response.
  11. TSP-ListFile

  12. This command creates a TSP response list file and displays a graph of the generated TSP response.
