6.2.17 SourceTracker

Outline of the node

For source localization results input in time series without IDs, this node gives the same ID to the source localization result obtained from an adjacent direction and a different ID to source localization results obtained from different directions. After running this node, the user can judge if the sound sources are same by IDs.

Necessary file

No files are required.

Usage

When to use

Source localization results vary even though sound sources are fixed (e.g. standing person or fixed speaker). Usually, they are not obtained from the same direction continuously. Therefore, in order to unify source location results so that they can be treated as coming from the same sound source, it is necessary to track the source location results. SourceTracker  uses an algorithm that gives the same ID to source localization results when sound sources are sufficiently close. As a criterion for judging if the sound source is sufficiently close to another, the user may set an angle as a threshold. IDs are given to sound sources with this node, which enables to perform processing for each ID.

Typical connection

Usually, the outputs of source localization nodes such as ConstantLocalization  or LocalizeMUSIC  are connected to the input terminal of this node. Then an appropriate ID is added to a localization result so users can connect it to the sound source separation module GHDSS  or the presentation node for source location results (DisplayLocalization ), which are based on source localization. Figure 6.34 shows a connection example. Here, a fixed source location result is displayed through SourceTracker . In this case, if the localization result that ConstantLocalization  outputs is close to another, they are output together in one sound source. When giving the following property to ConstantLocalization  in the figure, the angle between the two sound sources is less than 20[deg], which is the default value of MIN_SRC_INTERVAL and therefore only one sound source is presented.

ANGLES

<Vector<float> 10 15>

ELEVATIONS

<Vector<float> 0 0>

See ConstantLocalization  for the meaning of the set points

\includegraphics[]{fig/modules/SourceTracker}

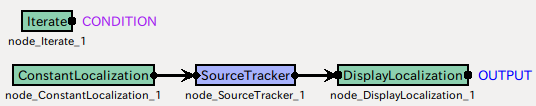

Figure 6.34: Connection example of SourceTracker

Input-output and property of the node

Input

INPUT

Vector<ObjectRef>  type. Source localization result with no ID given.

Output

OUTPUT

Vector<ObjectRef>  type. Source localization result for which the same ID is given to sound sources positioned near to another

Parameter

Table 6.30: Parameter list of SourceTracker

Parameter name

Type

Default value

Unit

Description

THRESH

float



To be ignored if the power of the sound source is smaller than THRESH.

PAUSE_LENGTH

float

800

[frame*10]

Length when assuming that the localized sound continues.

MIN_SRC_INTERVAL

float

20

[deg]

Threshold value of angular difference for judging that the sound source is same as another.

MIN_ID

int

0



DEBUG

bool

false


THRESH

float  type. This parameter judges by the power whether the source localization result is noise to be ignored. The result is considered noise if the power is smaller than THRESH, and the localization result is not sent to the output. When THRESH is too small, noise is sent to output, and when it is too large, it becomes difficult to localize the target sound, and therefore it is necessary to find the value that meets this trade-off.

PAUSE_LENGTH

float  type. This parameter determines how long the sound source once output as a localization result. For a direction that is localized once, even though there are no valid source localization results after the first localization, localization results for that direction continue being output during a period of PAUSE_LENGTH / 10 [frame].

Since the default value is 800, for a direction that is localized once, localization results continue being output for 80 [frame] after the first localization.

MIN_SRC_INTERVAL

float  type. If the source location result is smaller than MIN_SRC_INTERVAL, the two sound sources are judged as an identical sound source, and the influence of fluctuating motion of source localization is reduced by deleting either source localization result.

Details of the node

Definitions of symbols First, symbols used in this section are defined.

  1. ID ID of sound source

  2. Power $p$ Power of the direction localized.

  3. Coordinate $x,y,z$ Cartesian coordinate on a unit ball corresponding to the source localization direction.

  4. Duration $r$ The index that assumes how long the localized sound source lasts.

The power of the sound source localized is $p$, and the Cartesian coordinates on a unit ball corresponding to the sound source direction are $x$, $y$, $z$. Assuming $N$ is the number of sound sources that a node presently maintains and $M$ is that of the sound sources newly input, they are distinguished by the subscripts $^{last}$ and $^{cur}$. For example, power of the $i$ th newly input sound source is indicated as $p^{cur}_ i$. The angle between sound sources, which is an index that judges closeness of the sound sources, is assumed $\theta $. Criterion of closeness of sound source directions Assuming two sound source directions as coordinates on a unit circle of ${\bm@general \boldmath \m@ne \mv@bold \bm@command q} = (x, y, z)$ and $ \bm@general \boldmath \m@ne \mv@bold \bm@command q’ = (x’, y’, z’)$, the angle $\theta $ is expressed as follows.

  \begin{equation}  {\bm@general \boldmath \m@ne \mv@bold \bm@command q} \cdot {\bm@general \boldmath \m@ne \mv@bold \bm@command q’} = |{\bm@general \boldmath \m@ne \mv@bold \bm@command q}||{\bm@general \boldmath \m@ne \mv@bold \bm@command q’}|\cos \theta \end{equation}   (17)

Here, $ \bm@general \boldmath \m@ne \mv@bold \bm@command q, {\bm@general \boldmath \m@ne \mv@bold \bm@command q’}$ are points on the unit circle and therefore expressed as follows. $| {\bm@general \boldmath \m@ne \mv@bold \bm@command q}| = | {\bm@general \boldmath \m@ne \mv@bold \bm@command q’}| = 1$ Therefore, the term of absolute values is erased.

  \begin{equation}  {\bm@general \boldmath \m@ne \mv@bold \bm@command q} \cdot {\bm@general \boldmath \m@ne \mv@bold \bm@command q’} = \cos \theta \end{equation}   (18)

Here, $\theta $ is obtained by applying an inverse trigonometric function.

  \begin{equation}  \theta = \cos ^{-1} \left( {\bm@general \boldmath \m@ne \mv@bold \bm@command q} \cdot {\bm@general \boldmath \m@ne \mv@bold \bm@command q’} \right)= \cos ^{-1} \left( x\cdot x’ + y \cdot y’ + z \cdot z’ \right) \end{equation}   (19)

In order to simplify the indication, the angle between the $i$th sound source and the  $j$th sound source is expressed as $\theta _{ij}$ below. Sound source tracking method The processing that SourceTracker  performs in sound source tracking is shown in Figure 6.35. In the figure, the horizontal axis indicates (=repeat count) and the vertical axis indicates sound source directions. Moreover, the blue circle indicates the source position ($^{last}$) that the node already has and the green circle indicates the source location ($^{cur}$) newly input. First, for all the sound sources, if the powers $p^{cur}_ i and p^{last}_ j$ are smaller than THRESH, they are deleted. Next, comparing the source positions newly input with the localization information that the node already has, if they are sufficiently close (=$\theta _{ij}$ is below MIN_SRC_INTERVAL[deg]), they are integrated. The same ID is given to the integrated sound sources and the duration $r^{last}$ is reset at PAUSE_LENGTH. If source positions newly input are sufficiently close, they are integrated to one sound source. Integration is achieved by leaving one sound source and deleting the other sound positions. The sound sources with $\theta _{ij}$ larger than MIN_SRC_INTERVAL [deg] are judged as different sound sources. For the source positions that the node already has but are not newly input, $r^{last}$ is reduced by ten. The sound sources with $r^{last}$ less than zero is judged to have disappeared and is deleted. If the source position newly input is different from any of those that the node already has, a new ID is given to the sound source and $r^{cur}$ is initialized at PAUSE_LENGTH.

\includegraphics[width=.6\linewidth ]{fig/modules/SourceTracker-en.eps}
Figure 6.35: Sound source tracking method of SourceTracker
