HARK-Python3 is a package for HARK that enables Python code execution written using pybind11 .

HARK-Python3 provides two functions:

  1. Data visualization nodes using matplotlib and kivy (3.1.0 or later) a powerful visualization module for python.
  2. A wrapper to develop a HARK node using python3.

Benefits of HARK-Python3

Rich visualization

The visualization nodes implemented by HARK’s basic packages is limited. Currently only DisplayLocalization used for visualizing localization results is provided. By using HARK-Python3 package, the following visualization modules can now be used:

The object to draw Node name of matplotlib ver. Node name of kivy ver.
Waveform plotWaveform3 plotQuickWaveformKivy
Spectrogram plotSpec3 plotQuickSpecKivy
Localization plotSource3 plotQuickSourceKivy
Power of the MUSIC spectrum plotMUSICSpec3 plotQuickMUSICSpecKivy

Quick development of the new node

PyCodeExecutor3 allows you to utilize your own code. To do so, make sure to begin your code as follows:

from harkpython import harkbasenode
class HarkNode (harkbasenode.HarkBaseNode):
    def __init__(self):
        # define the output names and types of your node as tuples here.
    def calculate(self):
        # write your code here.

Then, build a network that uses PyCodeExecutor3.


For Windows users

  1. Install HARK for Windows using the installer. See Windows HARK installation instructions for details.

For Ubuntu users

  1. Add HARK repository and install Basic HARK Packages. See Linux HARK installation instructions for details.

  2. Install HARK-Python3

    sudo apt install hark-python3 python3-numpy python3-matplotlib
To use nodes of kivy version, install additional packages
sudo apt install python3-pip
sudo pip3 install kivy-garden
garden install graph

Getting Started

Tutorial 1: Run examples

Download HARK-Python3 examples

Run the following command

batchflow plotSource3Network.n plotSourceExample.xml
batchflow plotSpec3Network.n 2SPK-jp.wav
batchflow plotWaveform3Network.n 2SPK-jp.wav
batchflow plotMUSICSpec3Network.n 2SPK-jp.wav

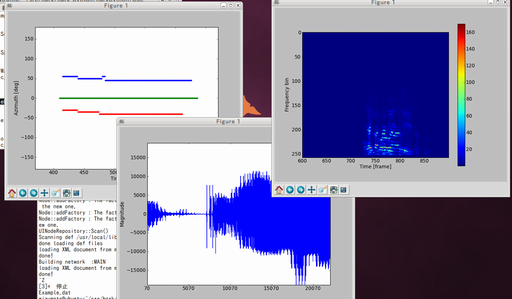

Then, you will see graphs drawn by matplotlib.

Tutorial 2: Implement your node with python

The goal is to calculate \(input1^3 + input2^5\)

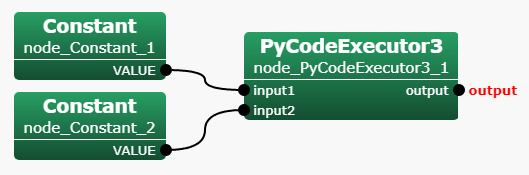

1. Place 2 Constants and a single PyCodeExecutor3 node into your HARK network. Right-click on PyCodeExecutor3’s output terminal, select “Set as Output”, and change the default value to “output”. Add input terminals “input1” and “input2” to PyCodeExecutor3 by right-clicking on PyCodeExecutor3’s node and selecting “Add Input”. Once completed, connect all nodes and save it as tutorial2.n.

  1. Set parameters
  1. node_Constant_1: int 3
  2. node_Constant_2: int 5
  3. PyCodeExecutor3: default.
  1. Write the code depicted bellow. Save it as samplecode.py in the same path as the network file.
from harkpython import harkbasenode

class HarkNode(harkbasenode.HarkBaseNode):
    def __init__(self):
        self.outputNames=("output",)  # one output terminal named "output"
        self.outputTypes=("prim_float",)  # the type is primitive float.

    def calculate(self):
        self.outputValues["output"] = self.input1 ** 3 + self.input2 ** 5
        # set output value
        # from two inputs: input1 and input2.
  1. Run

    batchflow tutorial2.n
Then, you will see the following output result
<Float 3152 >


How to writing Python3.x code for HARK-Python3

Several points to keep in mind in the Python code for HARK-Python3.

  • Always import the harkbasenode module.
  • Create a Node class that inherits from the harkbasenode.HarkBaseNode class.
  • Add a calculate() method that performs per-frame processing to the Node class.
  • Set the output terminal name and type appropriately. This determines the output terminal name and data type when using the PyCodeExecutor3 node in a network file.
  • The value to be output must match the type specified in advance.
  • When performing real-time processing assuming microphone array input etc, calculate() method should not block for more than 1 frame processing time.
  • In cases where container data types such as Vector , Matrix and Map are used, always write code that consides with empty elements.
  • The input/output terminal are case sensitive.


The harkbasenode module contains the basic interface to connect your python code and HARK. In order to implement Node code in HARK-Python3, it is necessary to create a class that inherits harkbasenode.HarkBaseNode class. In addition, classes that inherit harkbasenode.HarkBaseNode require the calculate() method.

In other words, it looks like the following example.

from harkpython import harkbasenode

class YourNodeName(harkbasenode.HarkBaseNode):
    def __init__(self):

    def calculate(self):

For details, in python interpreter, run

from harkpython import harkbasenode

Naming convention for node’s input/output terminals

In HARK standard nodes, input/output terminal names are unified so that they consist of only a combination of upper case character strings and underscores. There are also cases where numbers have been added at the end. But in fact it is more flexible.

You can use case-sensitive alphanumeric characters, underscores, and several other symbols. It is recommended to use only alphanumeric characters and underscores as symbols may cause trouble.

For example, the following names can be used without any problem.

  • INPUT1 , Input1 , input1 , and INPUT_1 (These are all recognized as separate input terminals.)
  • OUTPUT_PCM , OutputPCM , Output_PCM , and out1 (The same is true for output.)

Container type conversions

Container type of HARK is converted as follows:

Container type Python type Notes
Vector<ObjectRef> numpy.ndarray or list It is list only in the case of Vector<Source> . If the element is int or float , it will be a numpy.ndarray .
Matrix<ObjectRef> numpy.ndarray In the current version it will always be numpy.ndarray .
Map<int, ObjectRef> dict Usually, Vector or Matrix are stored using Source ID (intager value) as a dict’s key.
Source dict Since Source is expressed as a class (structure) in C++, members of the structure are managed by each key. The keys include id , x , power , remaining , count, last_found_count , tfindex , tfindex_min , and tfindex_max . In addition, the key x stores coordinates representing a point in Euclidean space as a list format as [x, y, z] . And tfindex is the transfer function index. Please see HARK-Document for details.

Compatible input/output terminal types

The names of output terminal types have the following regularity.

  • Names are always separated by an underscore.

    e.g.) aaaa_bbbb , aaaa_bbbb_cccc

  • The first element is the container name. There are the following four container names. For primitive types that do not have containers, prim_ is used.

    e.g.) prim_* , vector_* , matrix_ , map_*

  • The next element is the type of value stored in the previous container. Containers can be nested.

  • The last element is always a type.

    e.g.) *_bool , *_int , *_float , *_complex , *_string , *_source , *_vector_float , *_vector_complex

The following is an example that HARK-Python3 support. Types not listed here may not work.

HARK type Python type Output type Value example
Bool bool prim_bool
Int int prim_int
Float float prim_float
Complex<float> complex prime_complex
String str prim_string
Source dict(key='id','x','power','remaining', 'count','last_found_count', 'tfindex',tfindex_min','tfindex_max', 'compare_mode') prime_source
{'id': 1,
 'x': [0.5, 0.86602540378, 0.],
 'power': 32.5224,
 'remaining': 100,
 'count': 112,
 'last_found_count': 112,
 'tfindex': [12, 0, 0],
 'tfindex_min': [12, 0, 0],
 'tfindex_max': [12, 0, 0]}
Vector<int> numpy.ndarray(1dim) vector_int
[1 2 3]
Vector<float> numpy.ndarray(1dim) vector_float
[0.1 0.2 0.3]
Vector<complex<float> > numpy.ndarray(1dim) vector_complex
[1+9j 2-8j 3+7j]
Vector<Source> list vector_source
[{'id': 1,
  'x': [0.86602540378, 0.5, 0.],
  'power': 31.4316,
  'remaining': 70,
  'count': 180,
  'last_found_count': 180,
  'tfindex': [6, 0, 0],
  'tfindex_min': [6, 0, 0],
  'tfindex_max': [6, 0, 0]},
 {'id': 2,
  'x': [0.86602540378, -0.5, 0.],
  'power': 30.9881,
  'remaining': 90,
  'count': 180,
  'last_found_count': 170,
  'tfindex': [66, 0, 0],
  'tfindex_min': [66, 0, 0],
  'tfindex_max': [66, 0, 0]}]
Matrix<int> numpy.ndarray(2dim) matrix_int
[[1, 2, 3],
 [4, 5, 6],
 [7, 8, 9]]
Matrix<float> numpy.ndarray(2dim) matrix_float
[[1.1, 2.2, 3.3],
 [4.4, 5.5, 6.6],
 [7.7 8.8 9.9]]
Matrix<comlex<float> > numpy.ndarray(2dim) matrix_complex
[[1.1+9.9j, 2.2-8.8j, 3.3+7.7j],
 [4.4-6.6j, 5.5+5.5j, 6.6-4.4j],
 [7.7+3.3j, 8.8-2.2j, 9.9+1.1j]]
Map<int, Vector<int> > dict map_vector_int
{1: array([1, 2, 3]),
 2: array([4, 5, 6]),
 3: array([7, 8, 9])}
Map<int, Vector<float> > dict map_vector_float
{1: array([1.1, 2.2, 3.3]),
 2: array([4.4, 5.5, 6.6]),
 3: array([7.7, 8.8, 9.9])}
Map<int, Vector<complex<float> > > dict map_vector_complex
{1: array([1.1+9.9j, 2.2-8.8j, 3.3+7.7j]),
 2: array([4.4-6.6j, 5.5+5.5j, 6.6-4.4j]),
 3: array([7.7+3.3j, 8.8-2.2j, 9.9+1.1j])}
Map<int, Float> dict map_prim_float
{1: 0.1,
 2: 0.2,
 3: 0.3}

In summary, it looks like the following example. You will see that the input and output terminal names match on the network file side and the Python code side.


_images/harkpython-terminals.png _images/harkpython-nodeparams.png


from harkpython import harkbasenode

class YourNodeName(harkbasenode.HarkBaseNode):
    def __init__(self):
        self.outputNames=("OUTPUT_INT", "output_float", "OutputVector",)
        self.outputTypes=("prim_int", "prim_float", "vector_float",)

    def calculate(self):
        self.outputValues["OUTPUT_INT"] = 1
        self.outputValues["output_float"] = 1.1
        self.outputValues["OutputVector"] = [1.1, 2.2, 3.3, 4.4, 5.5, 6.6]

Special instance variable of HarkBaseNode class

These instance variables are set from the HARK (C++ code) side.

The name of the node. e.g.) node_PyCodeExecutor3_1 .
The ID of the node. If the node name is node_PyCodeExecutor3_1 , the ID is 1 .
The number of iterations. In other words, this is a frame count.

Let’s try to use self.count variable. The following example plots the input FFT data every 50 frames.

import numpy
from matplotlib import pyplot
from harkpython import harkbasenode

class YourNodeName(harkbasenode.HarkBaseNode):
    def __init__(self):
        self.outputNames = ("OUTPUT",)
        self.outputTypes = ("prim_int",)

        self.isFirst = True
        self.specgram = []
        self.winlen = 300

    def calculate(self):
        self.FFT = numpy.array(self.FFT)
        self.specgram.append(abs(self.FFT[0, :]))

        if self.count % 50 == 0:
            if len(self.specgram) > self.winlen:
                self.specgram = self.specgram[len(self.specgram)-self.winlen:]


            if self.isFirst:
                self.isFirst = False
            pyplot.xlim([0, self.winlen])
            pyplot.xticks(range(0, self.winlen, 50),
                         range(self.count - self.winlen, self.count, 50))
            pyplot.xlabel("Time [frame]")
            pyplot.ylabel("Frequency bin")

        self.outputValues["OUTPUT"] = 0

How to use PyCodeExecutor3

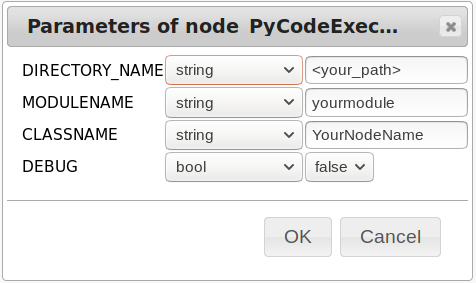

How do the parameters of the PyCodeExecutor3 node work?

This path is added to the python path. So, specify the path where your Python code is located here.
The module name written here is imported into Python. So, specify the module name of your Python code (a filename without the .py extension) here.
The class name in your Python code that will be instanciated.

The concept of how HARK calls the PyCodeExecutor3 node and how your Python code is executing is shown below in Python code representation. The difference is that, in fact, data is input in a stream (frame by frame), and processing results are also extracted in a stream (frame by frame).

import sys

object.nodeName = "node_PyCodeExecutor3_1"
object.nodeID = 1
object.count = 0

input_frames = {'input1': [[data1, data2, ...], [data1, data2, ...], ...],
                'input2': [[data1, data2, ...], [data1, data2, ...], ...],
                'inputX': [[data1, data2, ...], [data1, data2, ...], ...]}
#                          <==== frame01 ====>  <==== frame02 ====>  ...

output_frames = {}

# HARK stops when CONDITION terminal of any node of HARK becomes False.
while True:
    for (k,v) in input_frames.items():
        object.__dict__[k] = v[object.count]

    # For each iteration, calculate() is called

    for (k,v) in object.outputValues.items():
        output_values[k] = output_values.get(k, [])

    object.count += 1


Can I add a parameter to the script?

Currently, PyCodeExecutor3 does not pass the given parameters to the scripts. Instead, since PyCodeExecutor3 can receive an arbitrary number of inputs, you can realize this using a Constant node.

For example, adding subnet_param named THRESHOLD to PyCodeExecutor3,

  1. Add THRESHOLD input to PyCodeExecutor3.
  2. Add Constant node and connect its output to THRESHOLD.
  3. Change the type of the VALUE of the Constant node to subnet_param.

Can I improve the calculation speed?

Some tips exist to improve processing speed.

  1. Use python packages to increase speed: For example, using numpy or scipy will improve the scientific computation including matrix calculation, cython for using C functions, or scipy.weave for embedding C++ code into your python code.

  2. Skip calculation For example, plotting is too heavy to execute at every frame (i.e., 10 msec for default setting). In that case, you can use an instance variable self.count to execute the function at a regular interval.

    Here is an example code:

def calculate(self):
  if not self.count % 100 == 0:

  # do some heavy_calculation

However, if the computational speed requirements are very high, use HARK-Python for prototyping only and eventually implement the code in C++. This is the standard way in HARK.

I want to see other python code examples

HARK-Python3 includes some examples as described in tutorial 1. You can download HARK-Python3 source code from here.
