7.1.4 Working Screen

\includegraphics[width=120mm ]{fig/tools/harktool/en/start-2-en}

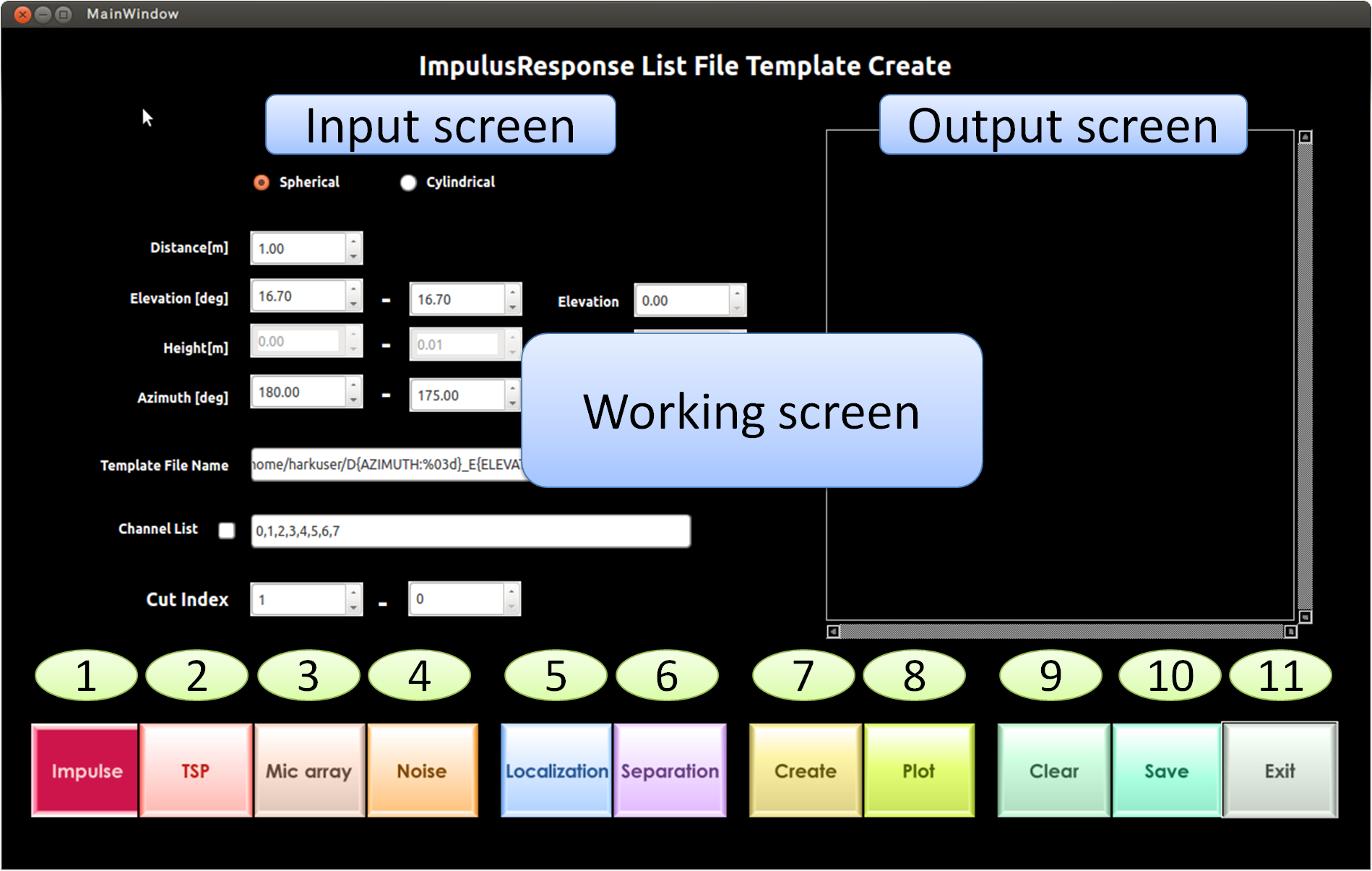

Figure 7.2: Working Screen

■Buttons of Working Screen

  1. Impulse
    This command creates an impulse response list file.
    This command also displays the graph of the generated impulse response.

  2. TSP
    This command creates a TSP response list file.
    This command also displays the graph of the generated TSP response.

  3. Mic array
    This command creates a microphone location information file.
    This command also displays the graph of the generated microphone location information file.

  4. Noise
    This command creates a noise location information file.
    This command also displays the graph of the generated noise location information file.

  5. Localization
    This command creates a localization transfer function file.

  6. Separation
    This command creates a separation transfer function file.

  7. Create
    This command creates a template file and a transfer function.

  8. Plot
    This command displays a graph.

  9. Clear
    This command resets the input parameters to the initial values.

  10. Save
    This command saves the created file.

  11. Exit
    This command exits the HARKTOOL4.

■Menu Items of the FILE tab of the Menu bar

  1. open
    Menu open opens the created file.

    save
    Menu save saves the created file.

■Menu Items of the MENU tab of the Menu bar

  1. Impulse
    Menu Impulse is the same as the Impulse button.

    tsp
    Menu tsp is the same as the TSP button.

    MicArray
    Menu MicArray is the same as the Mic array button.

    noise
    Menu noise is the same as the Noise button.

    localization
    Menu localization is the same as the Localization button.

    separation
    Menu separation is the same as the Separation button.

    create
    Menu create is the same as the Create button.

    plot
    Menu plot is the same as the Plot button.

    clear
    Menu clear is the same as the Clear button.

    Exit
    Menu Exit is the same as the Exit button.
