3.3.2 FlowDesigner for Windows

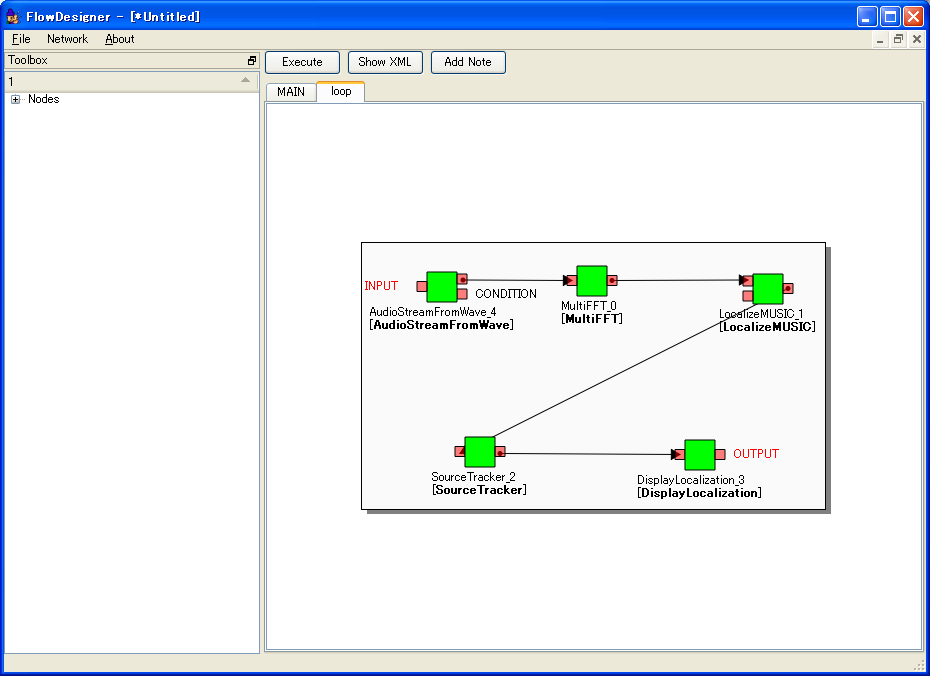

This section describes the FlowDesigner for Windows including how to use it and the difference from the Linux version.

3.3.2.1 Launch the FlowDesigner

You can launch the FlowDesigner in two ways:

    double click the  FlowDesigner icon on Desktop

or

Click Start menu -> Programs -> HARK -> FlowDesigner for HARK

You can also run from the command prompt.

> flowdesigner

3.3.2.2 Manipulating Nodes

• Add node
  First, open the tree named Node in the Toolbox sub-window on the left. Then, drag-and-drop a node.

  For example, if you want to add SpectralGainFilter , Select Nodes $\rightarrow $ HARK $\rightarrow $ Separation, and drag-and-drop the SpectralGainFilter to the Network.

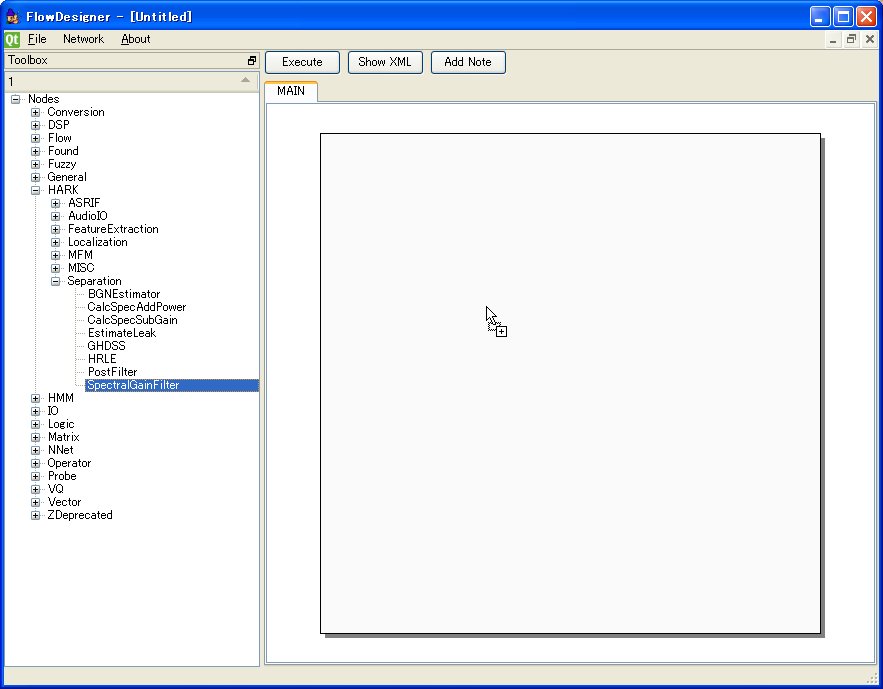

  Figure 3.15: Adding the node

• Delete node
  Click the node, and press the Delete button.

• Copy node
  not implemented.

3.3.2.3 Connecting Terminals

• Connect terminals
  The operation is similar to the FlowDesigner for Linux. Drag from the source terminal and drop at the destination terminal, then, these terminals will be connected by an arrow.

• Disconnect terminal connections
  Left click the connection, then, press the Delete button.

• Show terminal names
  FlowDesigner for Windows does not always show the terminal names. You can see them by putting the mouse cursor on the terminal. During the connection, you can see the terminal name and its type when you put the mouse on the terminal.

• Not implemented functions
  FlowDesginer for Windows does not support the function to turn the arrow color to red if the source and destination terminal types are different.

  FlowDesginer for Windows also does not support the function to reorganize the connections.
