8.2.2 Sound recording test with Multiface in HARK

Prior to sound recording, confirm devices. Table 8.3 shows the devices to be used.

Table 8.3: List of device to be used

Device name

Description

Hammerfall DSP Multiface

A/D, D/A conversion device

Digital Audio CardBus Interface

Card to add Multiface connection ports to PCMCIA slot

Octa Mic

Microphone preamplifier

\includegraphics[width=120mm]{fig/device/Multiface.eps}

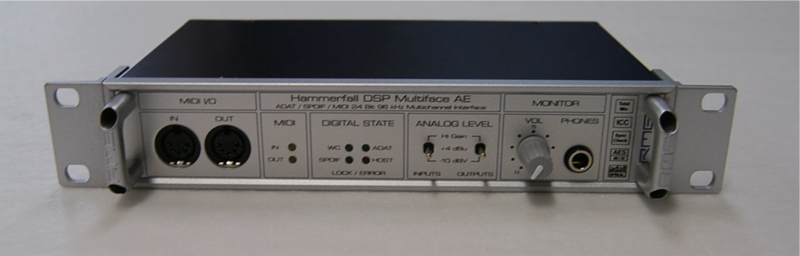

Figure 8.6: RME Hammerfall DSP Multiface (front)
\includegraphics[width=120mm]{fig/device/Multiface2.eps}

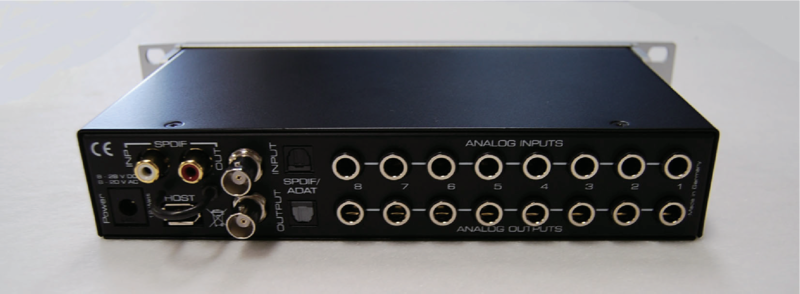

Figure 8.7: RME Hammerfall DSP Multiface (Rear)
\includegraphics[width=120mm]{fig/device/CardBus.eps}
Figure 8.8: PCMCIA CardBus Interface for Hammerfall DSP System
\includegraphics[width=120mm]{fig/device/OctaMic.eps}

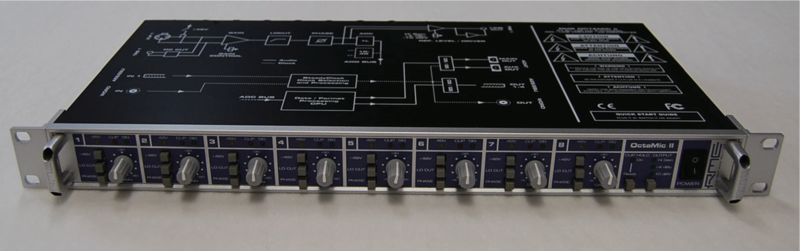

Figure 8.9: RME OctaMic (Front)
\includegraphics[width=120mm]{fig/device/OctaMic2.eps}

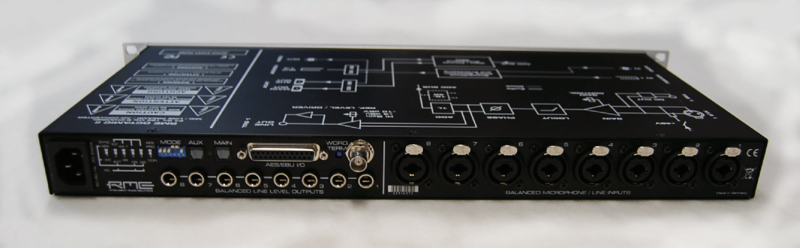

Figure 8.10: RME OctaMic (Rear)

For the sound recording test for HARK, change only the property of each module with the network file test.n, similar to that shown in Figure 8.2. Table 8.4 shows the setting of each property.

> ./test.n

Entering the above, the speech of the analog input 1 of Multiface is recorded for three seconds. The speech of PCM 16-bit quantization and 32kHz sampling are saved in the little endian RAW format.

Table 8.4: Properties of the sound recording network

Module name

Property name

Type of value

Set value

AudioStreamFromMic

LENGTH

int

1024



ADVANCE

int

320



CHANNEL_COUNT

int

8



SAMPLING_RATE

int

32000



DEVICETYPE

string

ALSA



DEVICE

string

plughw:1,0

ChannelSelector

SELECTOR

Object

$<$Vector $<$int $>$ 0 $>$

SaveRawPCM

BASENAME

string

sep



ADVANCE

int

320



BITS

int

16

Iterate

MAX_ITER

int

300
