14.5.5 MSLS+$\Delta $MSLS+Power+$\Delta $Power

Execute demo4.sh in the FeatureExtraction directory. An execution example is shown in Figure 14.24. After the execution, a file named MFBANK28_0.spec is generated. This file stores little endian 28 dimensional vector sequence expressed in the 32 bit floating-point number format. When separation cannot be performed well, check if the f101b001.wav files are in the data directory.

Figure 14.24: Execution example
$>$ ./demo.sh 4
UINodeRepository Scan()
Scanning def /usr/lib/flowdesigner/toolbox
done loading def files
loading XML document from memory
done!
Building network MAIN

Twelve modules are included in this sample is dozen. There are three modules in MAIN_LOOP (iterator) and nine modules in MAIN (subnet). MAIN (subnet) and MAIN_LOOP (iterator) are shown in 14.25 and 14.26. As an outline of the processing, it is simple network configuration in which acoustic features are calculated in MSLSExtraction with the audio waveforms collected in the AudioStreamFromWave module and are written in SaveFeatures . Since MSLSExtraction requires the outputs of the mel-scale filter bank and power spectra for calculation of MSLS, the collected audio waveforms are analyzed by MultiFFT and their data type are converted by MatrixToMap and PowerCalcForMap , and then processing to obtain outputs of the mel-scale filter bank is performed by MelFilterBank . Here, the USE_POWER property of MSLSExtraction is set to trueand to output the power term at the same time. MSLSExtraction reserves a storing region for the $\delta $ MSLS coefficient other than the MSLS coefficient and outputs vectors as a feature (zero is in the storing region for the$\delta $ MSLS coefficient). Since the USE_POWER property is set to true, a storing region of $\delta $ MSLS and the delta power term is secured for the $\delta $ coefficient. Therefore, vectors that are double of the values specified in the FBANK_COUNT property of MSLSExtraction +1 are output as a feature. The $\delta $ MSLS coefficient and delta power term are calculated and stored with Delta . SaveFeatures saves the input FEATURE. The localization result from the front generated by ConstantLocalization is gave to SOURCES.

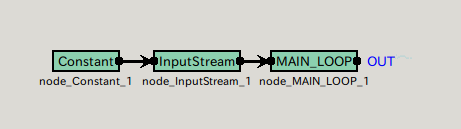

\includegraphics{fig/recipes/demo-FeatureExtraction4-MAIN.png}
Figure 14.25: MAIN (subnet)

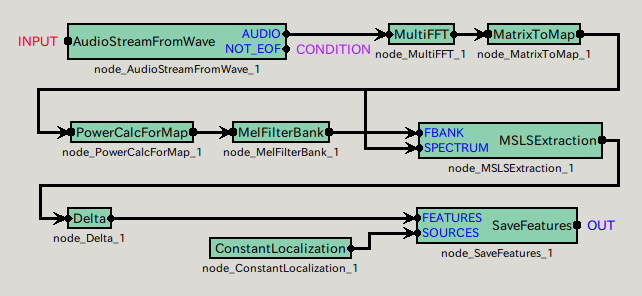

\includegraphics{fig/recipes/demo-FeatureExtraction4-MAIN_LOOP.png}
Figure 14.26: MAIN_LOOP (iterator)

Table 14.16 summarizes the main parameters.

Table 14.16: Parameter list

Node name

Parameter name

Type

Value

MAIN_LOOP

LENGTH

subnet_param

2



ADVANCE

subnet_param

3



SAMPLING_RATE

subnet_param

4



FBANK_COUNT

subnet_param

5



FBANK_COUNT1

subnet_param

6



DOWHILE

bool

(empty)

MSLSExtraction

FBANK_COUNT

subnet_param

FBANK_COUNT



NORMALIZE_MODE

string

Cepstral



USE_POWER

bool

true

Delta

FBANK_COUNT1

subnet_param

FBANK_COUNT1
